Save your sanity and use a grid

University web designers have a tough enough job as it is, juggling users needs while pleasing committees and numerous other stakeholders. Doesn’t matter if your web office has complete control or just influence, using a grid can make completely unrelated sites look uniform.

In this post I’ll focus on using a horizontal grid, vertical grids are not as popular so ill leave them up to you to explore.

So what is a grid?

unl grid 300x284 Save your sanity and use a grid

Grids exist for the single purpose of bringing uniformity to a traditionally nonuniform environment. The horizontal grid consists of a set of columns with left and right margins that create gutters. Page elements fit within these columns and gutters.

Using a standard grid allows for fast prototyping, wireframing and designing. By having a set of element widths it gives the designers constraints and the developers a global stylesheet to work from.

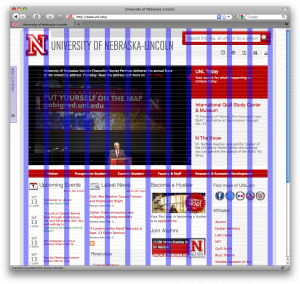

The above screen shot is from the University of Nebraska-Lincoln and it shows how nicely the page elements fit into the grid. You would be surprised at the number of sites that use this same grid structure.

Calculating a grid

Step 1 is to determine the site width. 960 is the standard width but you can choose anything you wish.

Step 2 is to choose how many columns you want. The most common numbers are 12 or 16.

Now the tricky part, each column has an equal left and right margin. A typical 12 column grid has 10px on each side which leaves you with a 20px gutter.

Determine your column width by taking the:

(960 px page width - 240 px total gutters) / 12 columns =  60 px wide columns

Reasons to use a grid

  • Designers love constraints, no really, they do
  • Consistency without mandating a template
  • Developers don’t have to start from scratch
  • Breaking the grid can make things stand out
  • Gives you the upper hand when working with demanding departments

Simple steps to start using a grid

  • Make a list of your most common page elements
    • Header, Menu, Search, Main Image, News, Events, Contact Info, Promotions, etc.
  • Dividing up the page into the desired number of columns and gutters
  • Place the elements on the grid
  • Using a framework
    • Design frameworks for Illistrator, Photoshop, InDesign..
    • CSS templates to get the structure up fast
  • Will soon become embedded in the culture of the designers and developers

Downsides of using a grid

  • They are constraining
  • CSS frameworks have been known to be bloated
  • Changing the grid after sites have been launched can be difficult
  • Can lead to non-semantic naming conventions

Some frameworks and resources

  • 960.gs
  • YUI Grid CSS
  • Blueprint
  • Grid Overlay Bookmark
  • Grid CSS Gallery
